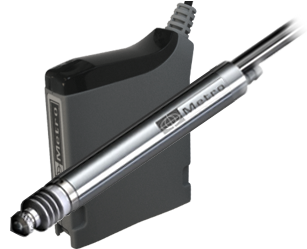

Digital probe - pneumatic actuation

In a world where everything has became digital, the digital probe brings important improvements with regards to the existing technologies. The digital probe consists of the probe itself and of its electronic head.

The digital probes have the same dimensions as the conventional probes and can be installed with similar mounting arrangements.

The electronic head houses the circuits that encures the digital conversion of the signal as well as the comminication management with the M-bus network. A "T" connector allows the probes juxtaposition.

Available in 4 measurement ranges, the digital probes are equipped with a M-bus network interface compatible with our display units.

With this version, the forward stroke is kept entered by a spring and is activated by air pressure.

This type of probe enables to make compact and cost reduced automatic measurement systems.

Main features

  • High precision
  • In-built electronic
  • Measurement range : from 1 to 20 mm
  • Resolution : from 0.01 to 0.08 micron
  • Adjustable pre-travel
  • Standard body diameter (8h6)
  • Interchangeable probe tip: M 2.5 mm
  • M-bus compatible
Main features
Robust construction

  • Stainless steel body
  • Probe tip motion ensured by precision linear ball bearing.
  • Gaiter in Viton®
  • IP65
Dimensions

  DP2P DP5P DP10P DP20P
A 55.5 mm 77.5 mm 102.5 mm 132 mm
B 10.9 mm 11.4 mm 14.4 mm 23.9 mm
C 13.9 mm 17.4 mm 25.4 mm 44.9 mm
Features

NAME DP2P DP5P DP10P DP20P
Measurement range (mm) 2 5 10 20
Total stroke (mm) 3 6 11 21
Resolution (µm) 0.12 0.30 0.61 1.22
Number of readings by second 240 240 240 240
Temperature coefficient (0-60°C)ppm E/°C 80 100 150 150
Standard Tip force (N@0,4 bar) 0.8 0.8 0.7 0.7
Feather touch Tip force (N@0,3 bar) 0.2 0.2 0.2 0.2
Operating temperature °C +0 +80 +0 +80 +0 +80 +0 +80
Gaiter material Viton ® Viton ® Viton ® Viton ®
Cable length 2m PUR 2m PUR 2m PUR 2m PUR
Fixation diamater 8h6 8h6 8h6 8h6
IP Rating IP65 IP65 IP65 IP65
Digital connector, MBus and Din Rail accessory

Feather touch

Feather touch probes (T suffix) are designed for delicate high precision components.

Article references

Items
References
DP2P
References: 81102
DP5P
References: 81105
DP10P
References: 81110
DP20P
References: 81120
