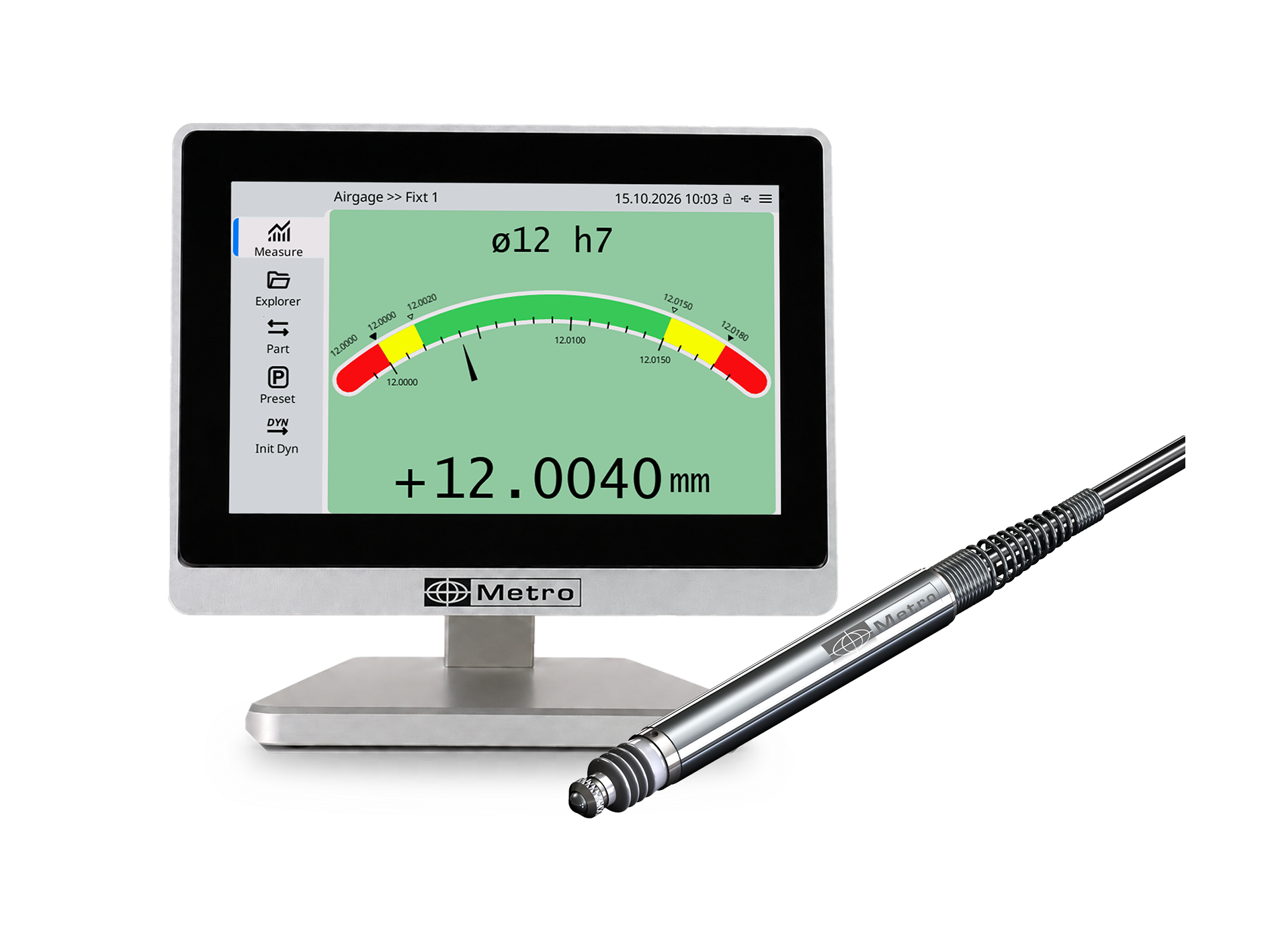

The M3 is the last generation tool for dimensional control from 1 or 2 Inductive probes.

The M400 is a powerful gauging unit designed to make dimensional control from 1 to 99 probes, air gages or measuring instruments.

With this version, the forward stroke is kept entered by a spring and is activated by air pressure. This type of probe enables to make compact and cost reduced automatic measurement systems.

Used since a long time, Inductive probes are often combined with the Metro displays units

The mini probe is a compact low profile transducer that is ideal for measurements in confined places such as bores.

On this version a spring ensures the actuation of the forward stroke and the contact pressure with the part to be measured.

On this version the forward stroke is actuated by pressured air.
This type of probe enables to make compact and cost-reduced automatic measurement systems.

The mini probe is a compact low profile transducer that is ideal for measurement in confined places sucge as bores. The transducer is based on a parallel spring structure taht ensures that it provides excellent repeatability over a long working life, even when rotated in bores that have key slots or lubrication ports.

Lever probes are for example used for precision gauging of components, such as shafts, for profiling. The narrow body (compared to devices based on dial test indicators) coupled with a gentle touch down to 0.05N enables access to difficult to reach details , even on fragile components.

Heidenhain MT probes are compatible with Metro displays, as well as M-Bus conditioners

Length gauges from Heidenhain offer high accuracy over long measuring ranges. They have a wide range of application in production metrology, in multipoint inspection stations, measuring equipments monitoring and as position measuring devices.

Flexure block gauge is ideal for very high volume and high precision applications such as bearing components gauging. It is often the best solution for measuring moving materials, such as roughness testing.

The block gauge BG enables to make simple and reliable measurements. It is particularly adapted to control bores or more generally where it is difficult to use a standard pencil probe. The motion is ensured by precision linear bearings that ensure an excellent repeatability.

The Mux4 and Mux8 multiplexers allow the connection of 1 to 8 measuring instruments (caliper, micrometer, comparators, scales, etc.) with a PC or other similar equipment equipped with a USB port or an RS 232 interface

Metro has designed the M400 Aerosol especially for the dimensional control of cans.

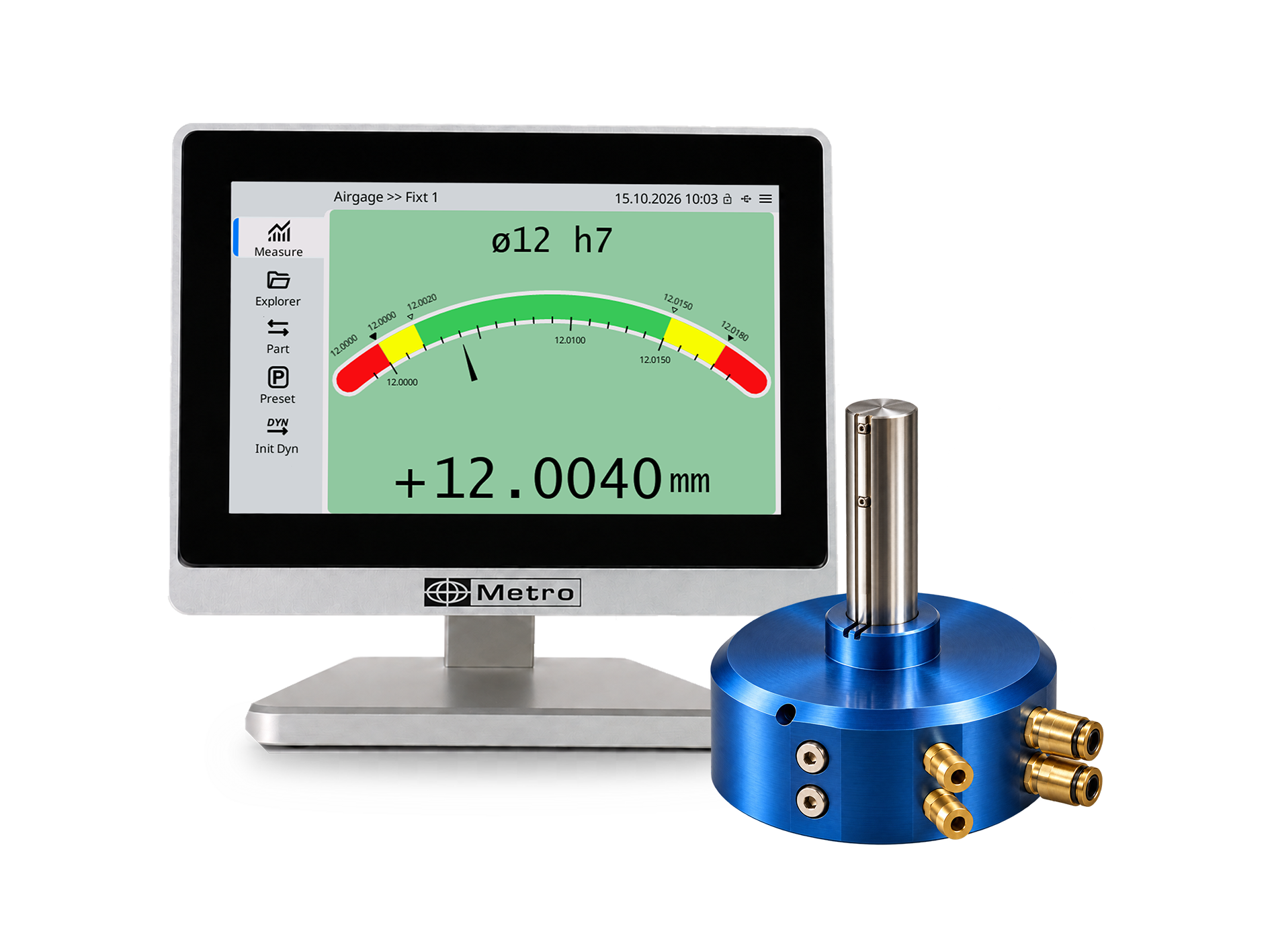

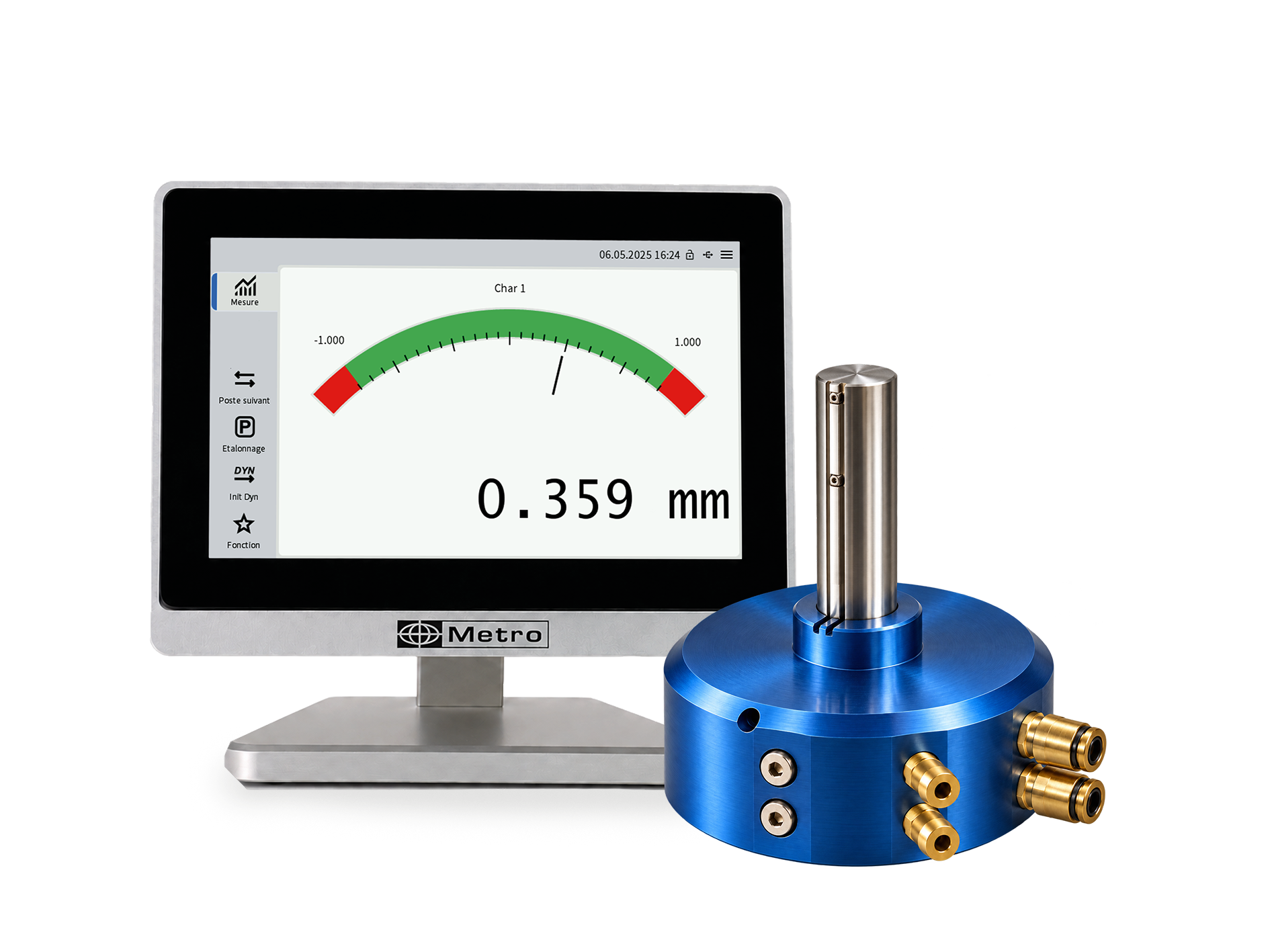

The M3 is the last generation of tool for dimensional control with an air gage : air ring, air plug gage, air fork etc. The M3 is compatible with all the air gage brands available making possible to keep your current air gage and to use this modern and versatile display.

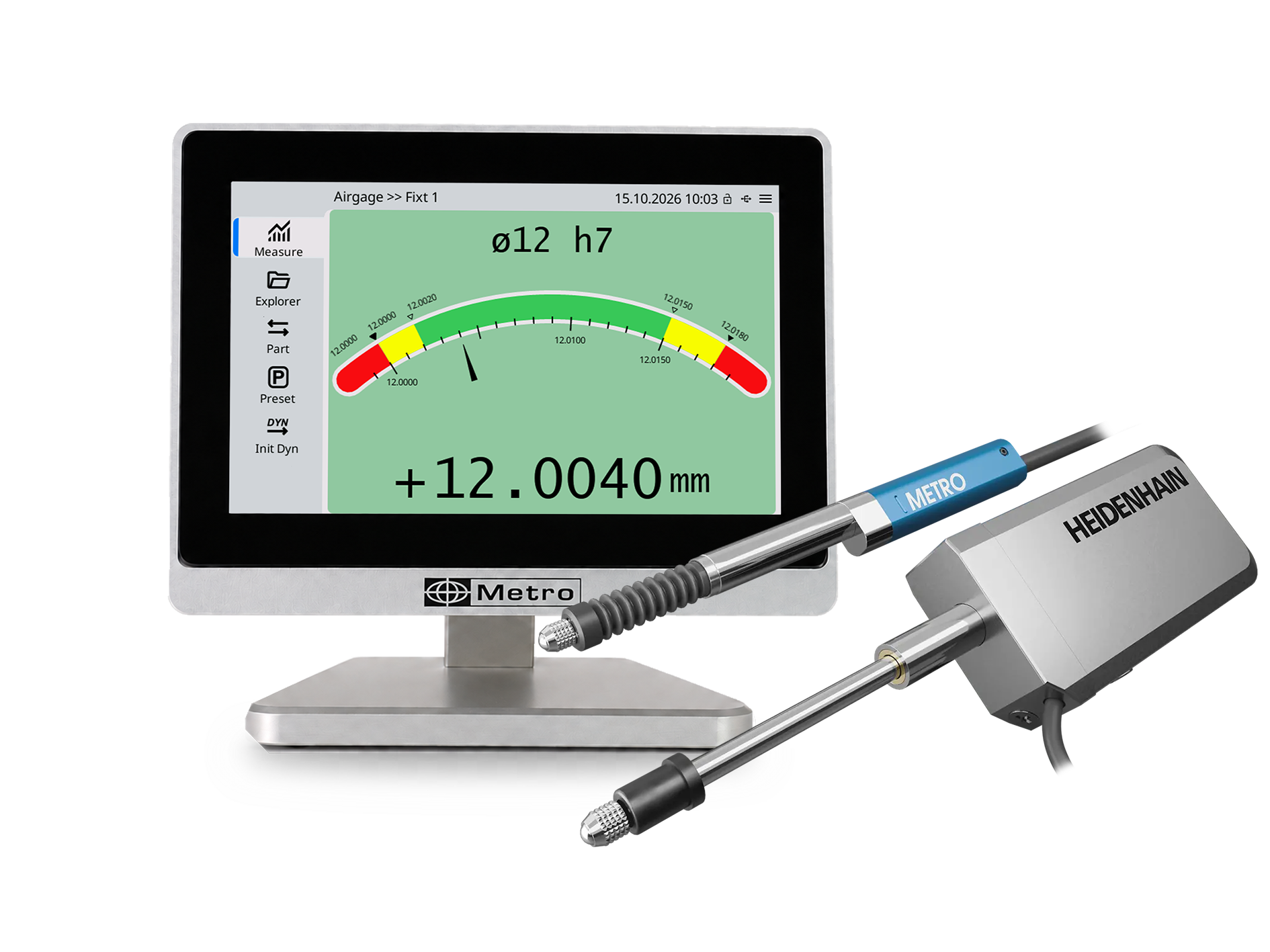

The M3 Incremental makes it possible to connect 2 incremental probes (Heidenhain type) directly to the display. Also allows the use of linear rulers. There is also a TTL version for Magnescale or Mitutoyo probes (via adapters).

The DPC20 is a compact device, allowing to control pressure in aerosol cans. Thanks to its intuitive menus and its general simplicity the DPC20 is a device that will be immediately adopted by every operator.

Master module to connect the M-Bus multiplexers to a computer or a PLC using RS232 or USB.

Master module to connect the M-Bus multiplexers to a computer or a PLC using Ethernet or USB

Communication module for Metro displays.

Module for automation with 8 optocoupled inputs/outputs.

Compatible with M3/ M400 displays and master modules MB-RS/MB-IP

The E-Mux4 and E-Mux8 multiplexers allow the communication of 1 to 4 and 1 to 8 instruments respectively with a PC or other similar equipment equipped with an RS 232 interface or a USB port.

The CA1 or CA4 is a compact conditioner module for half bridge (HBT) or LVDT probes. It is powered from the mains 24VDC

Air gaging is ideal for controlling large series of parts (automotive sector for example) or parts with high added value (aeronautics, medical, defense)

Module to connect 4 or 8 inductive probes max

The MB-RL upgrades older Monocote displays fitted with the optional relay board. Compatible with M3 / M400 displays.

Module to connect 1 temperature sensor. It can be used on the M3 and M400 displays for either an alarm when the temperature changes from a defined value since the last preset, or for temperature compensation.

Power supply module for M-Bus network This module give aditionnal power supply when the number of modules used together is excessive.

Module 1 RS232 input to connect instrument, weight scale ...

Module with 1 analogue input

Module to connect 1 device with an analog output 4-20mA or 0/+10V

Relay Output module, with 1 relay output, to pilot air economy system or aig gage probe output.

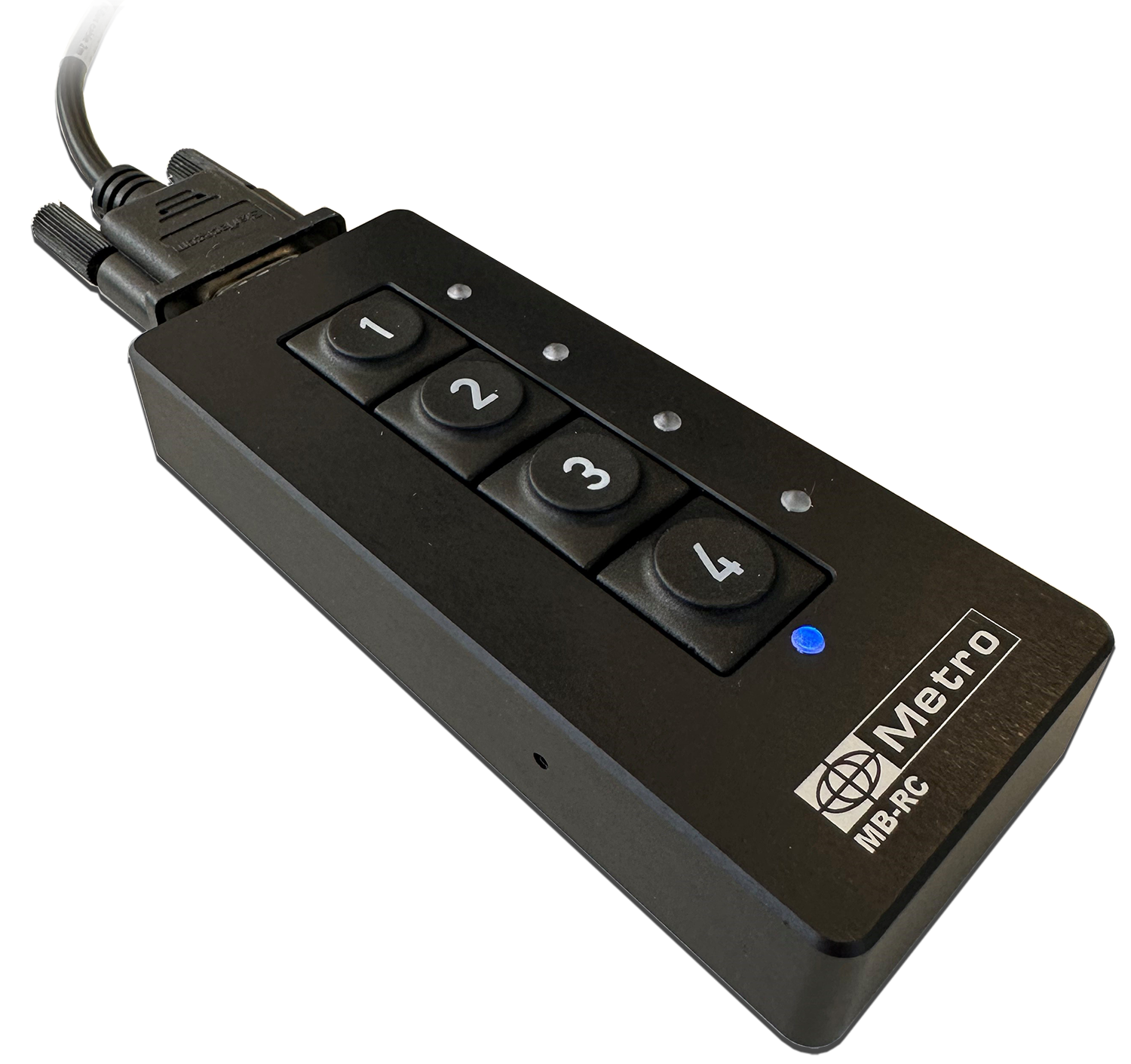

Module of 4 programmable buttons.

Module to conncet 1 air gage

Module to connect 2 incremental probes from Heidenhain

11µA or 1Vpp output signal.

Connection of Sylvac wireless measuring instruments

Connection of 4 capacitive probes from Sylvac

Connection of 4 Magnescale probes

Connection of 2 TTL probes or encoders

Connection of 1 to 4 measuring instruments (caliper, micrometer, digital indicator, weight scale etc.) from any brand

Connection if 8 laser probes from Micro Epsilon ref optoNCDT 1320/1420
