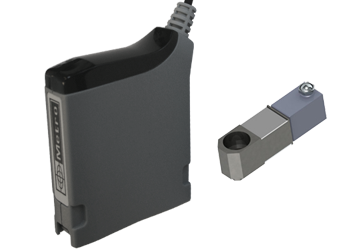

The mini probe is a compact low profile transducer that is ideal for measurement in confined places sucge as bores. The transducer is based on a parallel spring structure taht ensures that it provides excellent repeatability over a long working life, even when rotated in bores that have key slots or lubrication ports.

Product detail
Presentation
Specifications
References
Downloads
Related products
Ideal for measurement in confined places

In a world where everything has became digital, the digital probe brings important improvements with regards to the existing technologies. The digital probe consists of the probe itself and of its electronic head.

The digital probes have the same dimensions as the conventional probes and can be installed with similar mounting arrangements.

The electronic head houses the circuits that encures the digital conversion of the signal as well as the communication management with the M-bus network. A "T" connector allows the probes juxtaposition.

The digital probes are equipped with a M-bus network interface compatible with our display units.

The mini probe is a compact low profile transducer that is ideal for measurements in confined places such as bores. The transducer is based on a parallel spring structure that ensures that it provides excellent repeatability over a long working life, even when rotated in bores that have key slots or lubrication ports.

Main characteristics

  • Mechanical travel : 0.63 mm (max)
  • Measurement range +/- 0.25mm
  • Excellent repeatability
  • Resolution : from 0.005 to 0.08 micron
Main characteristics
Robust construction

  • Chromium steel body
  • Gaiter in Viton®
  • IP65
Dimensions

Caracteristics

Mechanical travel (mm) 0.63 maximum
Measurement range (mm) ± 0.25
Start of measurement range 20 à 30 µm from limit stop
Repeatability
 -  à 100 µm from limit stop 0,1 µm on axis et 0,1 µm cross axis
 -  à 250 µm from limit stop 0,25 µm on axis et 0,15 µm cross axis
 -  à 500 µm from limit stop 0,5 µm on axis et 0,25 µm cross axis
Resolution 0,01 µm with Metro Conditioner
Bandwidth Adjustable from 6 Hz to 460 Hz
Reading rate Up to 3906 readings/second (dynamic measure mode)
Tip force (N) @ center travel 0,7 N ± 25%
Temperature coefficient 0,08 µm/°C
Mass 15g
Materials Body : Chromium steel, Gaiter : Viton
Fixation M3 screw (supplied)
IP rate IP65
Fig. 1 – External diameter measurement in confined place
Fig. 1 – External diameter measurement in confined place
Fig. 2 – Internal diameter measurement
Fig. 2 – Internal diameter measurement
Digital connector, MBus and Din Rail accessory

Article references

Items
References
DM/05/STD
References: 81307
DM/05/EXT
References: 81308
